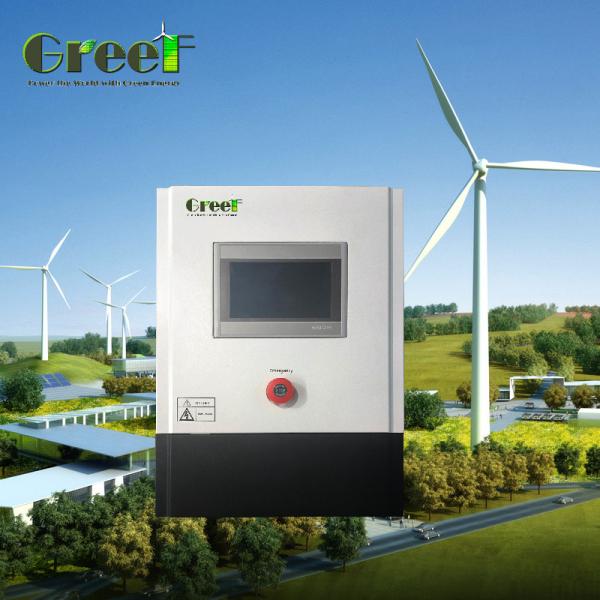

On Grid Controller With MPPT 3kw 5kw 10kw CE Certification

Name: On Grid Controller With MPPT 3kw 5kw 10kw CE Certification
Brand: GreeF
Price: 1 USD

Wholesale On Grid Controller With MPPT 3kw 5kw 10kw CE Certification from china suppliers

Brand Name : GreeF

Model Number : GCI

Certification : UL, CE, TUV, SAS

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, Western Union, L/C,, MoneyGram

Delivery Time : 45 Working Days

Packaging Details : Carton or Plywooden Case

DC reverse-polarity protection : Yes

AC shor circuit protection : Yes

AC output overcurrent protection : Yes

Output overvoltage protection-varistor : Yes

Ground fault monitoring : Yes

Grid monitoring : Yes

Islanding protection : Yes

Temperature protection : Yes

Intergrated DC swich : Option

Mppt Efficiency : 99.9%

Contact Now

On Grid Controller With MPPT 3kw 5kw 10kw CE Certification

Product Introduction

Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor. GT-PCTC series wind professional grid-tied controller which have Double safety control systems: PWM constant voltage system and three-phase dump load brake system, This innovative solution also interfaces with solar inverters from brands like Growatt, Deye, Solis, and Ivet, enabling solar inverters to adapt to wind turbine operating conditions.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
PWM constant voltage	≥400dc			≥700dc
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW	GT-ACDC-50KW	GT-ACDC-100KW
Wind turbine rated power	10KW	20KW	30KW	50KW	100KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc	≥700dc	≥700dc	≥700dc	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc	750±5Vdc	750±5Vdc	750±5Vdc	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
Size of the controller (mm)	550395270	6005001200	6005001200	930580430mm	11006001800
Controller Weight	25Kg	66Kg	68Kg	50KG	406KG
Dump load Size (mm)	690520270	690530520	710890590	710890590	Dumpload built-in
Dump load Weight	45Kg	55Kg	55Kg	55Kg	Dumpload built-in

Product Details

System Solution

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
requirements, please contact us!
