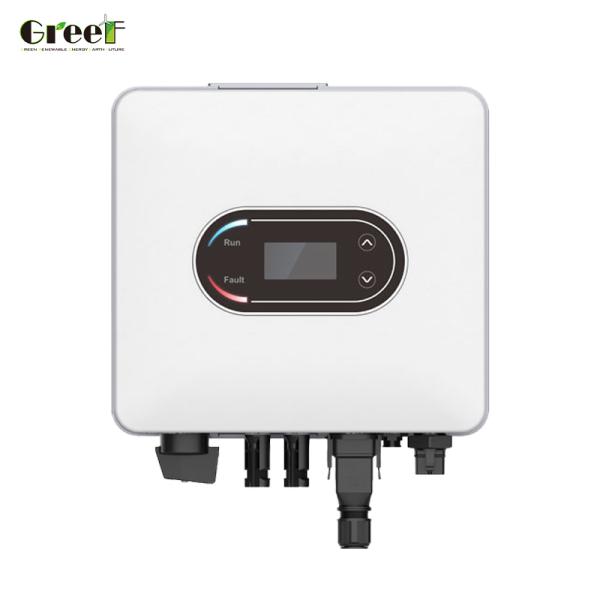

3-110KW Intelligent Simple O&M Support Outdoor Installation IP60 Single / Three Phase 50Hz / 60Hz On Grid Inverter For Home Use

Name: 3110KW Intelligent Simple OampM Support Outdoor Installation IP60 Single Three Phase 50Hz 60Hz On Grid Inverter For Home Use
Brand: INVT
Price: 1 USD

Brand Name : INVT

Model Number : XG

Certification : IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 400SETS

Delivery Time : 15Days

Packaging Details : Package

Rated Output Power : 3kW-110kW

Rated Input Voltage : 360V-620V

Rated Grid Voltage : 220Vac / 240Vac / 230Vac / 400Vac, 3L / N / PE, 3L / PE

Max. Current per MPPT : 20A-30A

MPPT Efficiency : 99.90%

Rated Grid Frequency : 50Hz / 60Hz

Communication : RS485 / WiFi / 4G

Display : LCD / LED+APP

Protection Degree : IP66

Contact Now

Product Introduce

INVT grid-connected inverter products demonstrate excellent performance in PV systems by virtue of a number of core technology advantages. Its intelligent diagnostic system can accurately locate PV string faults and quickly analyze the abnormalities on the AC side through real-time waveform recording. Together with the optional Arc Fault Protection Function (AFCI), it builds up a complete safety mechanism from detection to response. The product adopts a wide MPPT voltage range design, which, together with a conversion efficiency of up to 98.8%, significantly improves power generation; it supports DC overmatching function to enhance the flexibility of system expansion. In terms of operation and maintenance, the inverter supports multi-mode remote monitoring (RS485/WiFi/4G, etc.), which greatly reduces the need for on-site maintenance with its simple operation interface. The protection level reaches IP66, adapting to the harsh outdoor environment, and integrating more than ten safety mechanisms, such as DC reverse protection, anti-islanding, surge protection, etc., to ensure the stable operation of the system. The product is compatible with high power components, and the multi-MPP tracking technology improves single-loop tracking accuracy. It is suitable for industrial, commercial, household and other scenarios, and helps clean energy projects realize the goals of high efficiency and low-carbon development.

Product Paramenters

Model	XG1KTL-S	XG2KTL-S	XG3KTL-S	XG4KTL-S	XG5KTL-S
Input (DC)
Max. Input Power	1.5kW	3kW	4.5kW	6kW	7.5kW
Max. Input Voltage	600V
Start Voltage	60V
Rated Input Voltage	360V
MPPT Voltage Range	50V ~ 550V
Number of MPP Trackers / String per MPPT	1 / 1
Max. Current per MPPT	20A
Max. Short Circuit Current per MPPT	26A
Output (AC)
Max. Output Current	5A	10A	15A	20A	22.7Ad
Rated Output Power	1kW	2kW	3kW	4kW	5kWa
Max. Output Power	1.1kVA	2.2kVA	3.3kVA	4.4kVA	5kVAc
Rated Grid Frequency	50Hz / 60Hz
Rated Grid Voltage	220Vac / 230Vac / 240Vac
Rated Grid Voltage	>0.99 ( 0.8 leading ~ 0.8 lagging )
THDi	3%(Rated Power)
MPPT Efficiency	99.90%
Communication
Display	LCD / LED+APP
Communication	RS485 / WiFi / 4G
Certification	IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116
Weight	6kg
Operating Temperature Range	-30° C ~ +60° C
Cooling Method	Natural
Protection Degree	IP66
Relative Humidity	0 ~ 100%
Topology	Transformerless
Night Power Consumption	＜1W

The above table is only a few of the product parameters, if you need the parameters of other product models, please contact our sales staff.

Details Images

System Solution

We can customize the system to your needs, please contact us.
